18 Stk. an Lager
Carbide drill TYPHOON 355HPU Ø6.80mm
Regular price:
CHF 53.66
Item original number:
355HPU0680
Item number:
813922
Technical documents:
Delivery time: 1-3 days
Product information "Carbide drill TYPHOON 355HPU Ø6.80mm"
as long as stock
| Area of application: | K1 Grey cast iron 150-250 HBK2 Nodular cast iron 150-350 HBK3 Austenitic cast iron ≤260 HBK4 ADI cast iron 250-500 HBM1 Stainless steel ≤700 N/mm²M2 Stainless steel ≤750 N/mm²M3 Stainless steel ≤850 N/mm²M4 Stainless steel ≤950 N/mm²M5 Stainless steel ≤1250 N/mm²N1 Aluminium alloys ≤ 12% SiN2 Aluminium alloys > 12% SiN3 CopperN4 Bronze and brassN5 Plastic materialsN6 Fiber and compositesP1 Steel ≤500 N/mm²P2 Steel 500-700 N/mm²P3 Steel 600-800 N/mm²P4 Steel 800-1000 N/mm²P5 Steel 900-1200 N/mm²P6 Steel 1200-1600 N/mm²S1 HRSA ≤25 HRCS2 HRSA 25-35 HRCS3 HRSA 35-45 HRCS4 Low alloy titaniumS5 High alloy titanium |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
◌ N1 Aluminium alloys ≤ 12% Si◌ N2 Aluminium alloys > 12% Si◌ N3 Copper◌ N4 Bronze and brass◌ N5 Plastic materials◌ N6 Fiber and composites● K1 Grey cast iron 150-250 HB● K2 Nodular cast iron 150-350 HB● K3 Austenitic cast iron ≤260 HB● K4 ADI cast iron 250-500 HB● M1 Stainless steel ≤700 N/mm²● M2 Stainless steel ≤750 N/mm²● M3 Stainless steel ≤850 N/mm²● M4 Stainless steel ≤950 N/mm²● M5 Stainless steel ≤1250 N/mm²● P1 Steel ≤500 N/mm²● P2 Steel 500-700 N/mm²● P3 Steel 600-800 N/mm²● P4 Steel 800-1000 N/mm²● P5 Steel 900-1200 N/mm²● P6 Steel 1200-1600 N/mm²● S1 HRSA ≤25 HRC● S2 HRSA 25-35 HRC● S3 HRSA 35-45 HRC● S4 Low alloy titanium● S5 High alloy titanium |
| Coating / Suface: | PV250 |
| Coolant hole: | Yes |
| Drilling depth: | 5 |
| Friction coefficient: | 0.3 |
| Hardness: | 3300 |
|

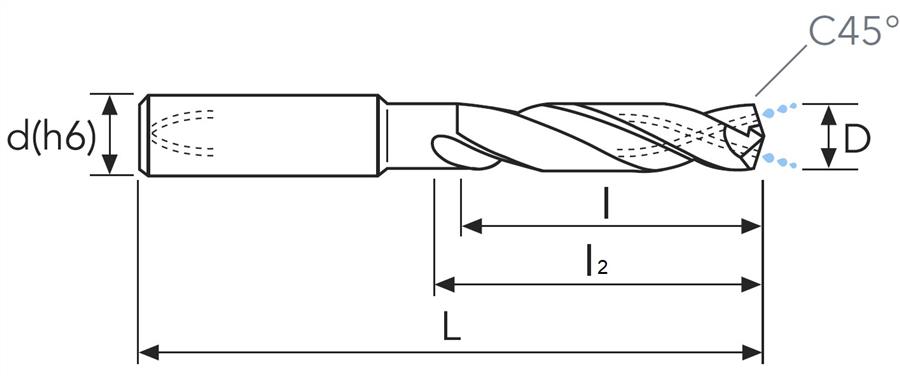

Helix angle (a1): |
30 |
|
Lenght helix (l): |
43 |
|
Length effective (l2): |
53 |
|
Length total (L): |
91 |
| Manufacturer: | Osawa |
| Max. working temperature: | 900 |
| Point angles: | 140 |
| Product line: | 355HPU |
| Shaft type: | h6 cylindrical shank DIN6535 HA |
| Substrate: | Micro Grain |
| Thickness: | 2.5 - 3.5 |
|
Ø Cutting edge (D): |
6.8 |
| Ø Cutting edge tolerance: | +0.021/+0.006 |
|
Ø Shaft (d): |
8 |
