20 Stk. an Lager
Carbide inserts APKT 1604PDER-PRS AP5030
CHF 16.74
Item original number:
APKT 1604PDER-PRS AP5030
Item number:
824575
Technical documents:
Delivery time: 1-3 days
Product information "Carbide inserts APKT 1604PDER-PRS AP5030"
| Area of application: | M1 Stainless steel ≤700 N/mm² M2 Stainless steel ≤750 N/mm² M3 Stainless steel ≤850 N/mm² M4 Stainless steel ≤950 N/mm² M5 Stainless steel ≤1250 N/mm² P1 Steel ≤500 N/mm² P2 Steel 500-700 N/mm² P3 Steel 600-800 N/mm² P4 Steel 800-1000 N/mm² P5 Steel 900-1200 N/mm² P6 Steel 1200-1600 N/mm² S1 HRSA ≤25 HRC S2 HRSA 25-35 HRC S3 HRSA 35-45 HRC S4 Low alloy titanium S5 High alloy titanium |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
◌ M1 Stainless steel ≤700 N/mm² ◌ M2 Stainless steel ≤750 N/mm² ◌ M3 Stainless steel ≤850 N/mm² ◌ M4 Stainless steel ≤950 N/mm² ◌ M5 Stainless steel ≤1250 N/mm² ◌ S1 HRSA ≤25 HRC ◌ S2 HRSA 25-35 HRC ◌ S3 HRSA 35-45 HRC ◌ S4 Low alloy titanium ◌ S5 High alloy titanium ● P1 Steel ≤500 N/mm² ● P2 Steel 500-700 N/mm² ● P3 Steel 600-800 N/mm² ● P4 Steel 800-1000 N/mm² ● P5 Steel 900-1200 N/mm² ● P6 Steel 1200-1600 N/mm² |
| Chip breaker: | PRS |
| Clearance angle: | P 11° |
| Coating / Suface: | PVD |
| Corner radius: | Gerundet |
| Fixing and geometry: | T |
| Grade: | AP5030 |

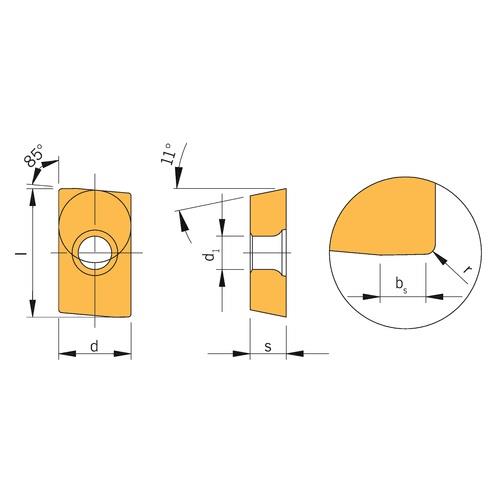

| Identification to ISO: | APKT 1604PD |
| Insert shape: | A 85° |
| Insert size: | 16 |
| Insert thickness: | 4.76 |
| Manufacturer: | Arno |
| Substrate: | VHM |
| Tolerances: | K |
| Type of insert: | APKT |
